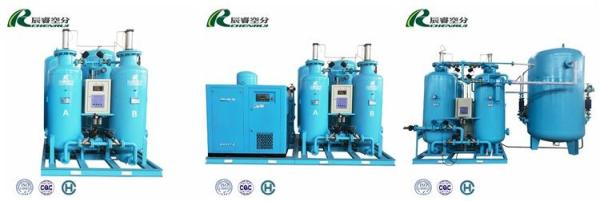

Industrial Medical PSA Oxygen Generator System , CE / ISO / Approved
Product Description
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and
Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).
The compressed air is passed through a Twin Tower PSA module interconnected with automatic
changeover valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air
will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special
grade of adsorbent which have the property of preferential adsorption of nitrogen molecules. At a time
one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration
which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen
gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back
pressure Regulator
1. Technical parameters
1). Oxygen yield: 3~400Nm3/h
2). Oxygen purity: 90%~95%
3). Oxygen pressure: 0.1~0.6MPa
4). Dew point of oxygen: ≤ -45℃ (Special requirements can be below -60 ℃)
2. Oxygen Generator Specification
Oxygen filling station in one skid with the PSA oxygen generator and oxygen compressor, no need separated room for the oxygen filling station - easy installation with convenience operation. However, if the separated room for oxygen filling station would be needed by local regulations, the filling station could be easily removed from the skid and put in the room.
Time-proven CANGAS PSA technology makes the plant more economic, more convenient and more reliable. All parts are from famous brands with reliable performance. Unique design makes the plant cost-saving - high production rate with minimum power consumption.
The CFS system is one of the best solutions for the small gas business; it is affordable and offers a new profit center for your O2 business.
Standard models with capacities from 1Nm3/h to 80Nm3/h are available now for the market, other customized models are available also. CANGAS is ready at your service. Detailed model selection table is as below.
3. Process Flow Brief Description
4. Technical characteristics of PSA oxygen generator
* Compressed air is equipped with air purification and drying treatment device. Clean and dry compressed air is conducive to extending the service life of molecular sieve.
* The new pneumatic globe valve adopted has the advantages of fast opening and closing speed, no leakage, long service life, frequent use of psa process and high reliability.
* Perfect process design, selection of new molecular sieve.
* Adopt new technology of oxygen production, optimize device design constantly, reduce energy consumption and capital investment.
* The compact structure of the equipment reduces the occupied floor space.
5. Application fields
PSA industrial oxygen generator can be widely used in oxygen-enriched combustion petrochemical industry, electric furnace steelmaking, papermaking, glass production, making ozone, aquaculture, sewage treatment, aerospace and other industries and fields, for the different requirements of different users of different industries use of oxygen, since provide personalized, specialized oxygen equipment, fully meet the requirements of different users of gas.
